About 61% is slim in comparison with the goods so far. |
For the circuit board vs electric wire connection. |
|

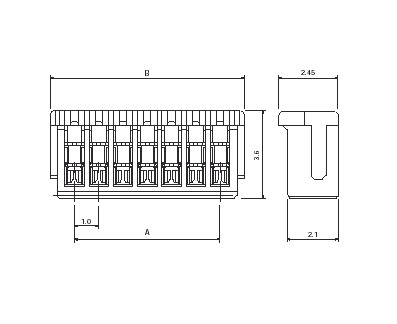

SR CONNECTOR |
|
|
 |
 |
|
 AWG30 One side, Solder corting.
one side, Due at the pressure.
Length 20mm
|
|
|
|
|
|
-

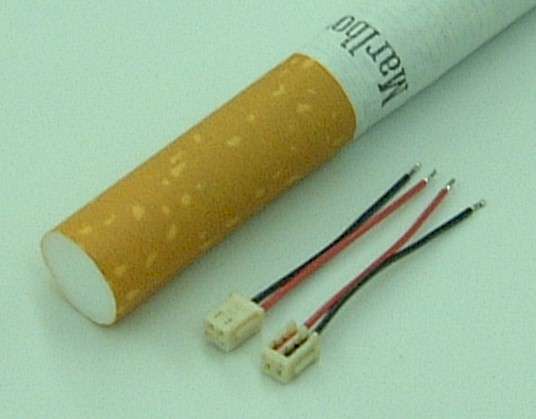

Ultra-compact
-
Although this shrouded header has locking features for its mating
receptacle, there are no holes in the header shroud that would
adversely effect vacuum gripping equipment.
-
Twin U-slot ID section
-
The same shrouded header can be used for the SH crimp style
connector.
Specifications
- Current rating :
- 0.7A AC,DC
- Voltage rating :
- 50V AC,DC
- Temperature range :
- -25 to +85 Degrees C
(including temperature rise in applying electrical current)
- Applicable wires :
- AWG #30
Conductor/7 strands, tin-plated annealed copper
Insulation O.D./0.5 to 0.6mm (.020" to .024")
- Available number of circuits :
- 2 to 13, 14 (Side entry)
- PC board mounting direction :
- Top entry, Side entry
|
|
As for the estimate, question, from this.
