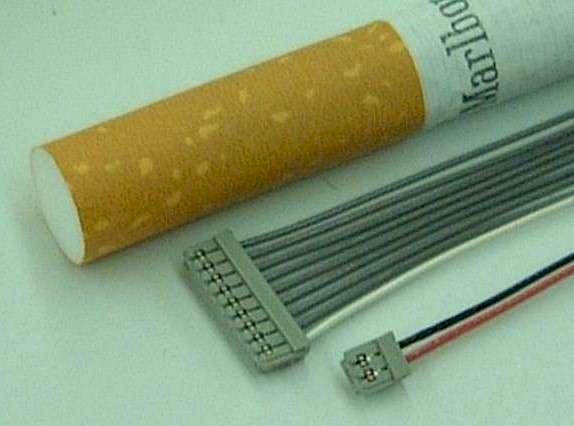

Ultra-compact
-
Although this shrouded header has locking features for its mating
receptacle, there are no holes in the header shroud that would
adversely effect vacuum gripping equipment.
-
Twin U-slot ID section
Specifications
- Current rating :
- 0.5A AC,DC
- Voltage rating :
- 50V AC,DC
- Temperature range :
- -25 to +85 Degrees C
(including temperature rise in applying electrical current)
- Applicable wires :
- AWG #32
Conductor/Double-ended harness : 7 strands, tin/lead
Single-ended harness : 7 strands, tin-plated
annealed copper Insulation O.D./0.52 to 0.56mm (.020" to
.022")
- Available number of circuits :
- 2 to 4, 6, 8 to 14
- PC board mounting direction :
- Side entry
|
