SUR CONNECTOR For W to B Connection

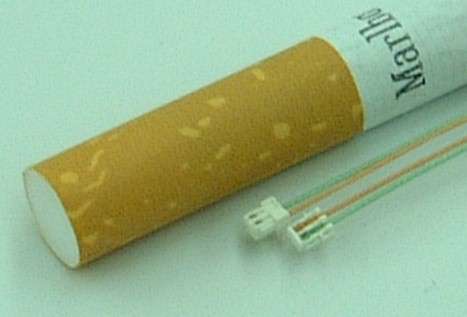

The world's first 0.8 mm pitch IDC Wire to Board
miniaturised connector with mounting height
of 1.75 mm and depth of 3.9 mm
Designed to have wide absorption area
for automatic mounting
Header has no locking hole on the outer surface
as the locking device is designed to be located
inside of the wafer thanks to the special molding
technique. Thus, absorption area for automatic
mounting can be side enough.
Twin U-slot ID part
The twin U-slot, which consists of a contact and ID
connection part,provides highly rellable connection
with the wire.
Specifications
Current rating :0.5A (AC/DC,AWG32)
Voltage rating :
30V AC,DC
Temperature range :
-25 to +85 Degrees C
(including temperature rise in applying electrical current)
Applicable wires :
AWG #32,/7 stranded tin-plated wire
No.of circuits :
2,8,12,14&16 circuits
Direction of entry:
Side entry
